Specification
1 , Model : JX-1600DH
2 ,Size : 970x890x2050 mm
3 ,Weight : 400kg
4 , Work station high : 1020 mm
5 , Plant view :1730x1400 mm
6 , Packing size :1050x1000x2100 mm ,Packing weight :450 kg
7 , Melting tank : (5 liter )x1
8 , Gun & Tip Angle : (36.40 600 900 )
9 , Heated hose : JX-ZH-16-Cx1
10 , Electricity : 200-240 VAC / 1 phase /50 or 60 Hz
11 ,Temperature Control Zones : 5
12 , Temperature range : 700C-2600C
13 , Max power (kw) : 6 kw
14 , Working pressure :0.5 Mpa -0.8 Mpa
15 , Air consumptiom : 0.1m3/min
16 , Clamping device : air qver oil
17 , Clamping force : Max 10 ton
18 , Clamping stroke : 150 mm
19 , Control system : touch screen
20 , Standard mold set size (mm) : 230x150x303(75kg)
21 , Max mold set size (mm) : 300x200x303 mm
22 , Max part size (mm) : 100x90x18 mm
Feature
1 , Single station vertical injection system ,especially on the left and right parallel continuous wire outlet mold design is more reasonable and reliable .
2 , Console and sol system adopts the integral layout ,flexible use
3 , Console touch-screen display ,with muti-language PLC control system
4 , Glue gun is directly connected with sol cylinder by a hose ,compact structure ,stable plastic injection .
5 , Injection pressure adjustable ,DELTA temperature control module ,accurately monitor the temperature conditions .
6 , The hands switch clamping and safety grating ,emergency stop switch ,to ensure safe operation .
7 , The mold is convenient to replace ,workbench build product ejection device ,convenient to extract product .
8 , Dual cylinders is optional glue injection is more stable , high production efficency
9 , According to the human engineeing machine pedel design convenient operation .
|
|

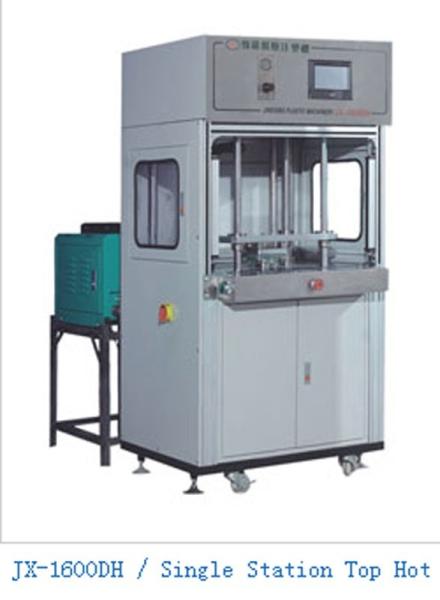

mobile battery low pressure injection machine ,low pressure injection moulding machine Images
|
